Application of Biotechnology
Application of Biotechnology
Biotechnology is the application of
scientific and engineering principles to the processing of materials by
biological agents to produce goods and services (Coleman, 1986).
Biotechnology may be defined as a
technology based on biological systems plants, animals and microbs or parts of
it (cell, tissue, genes or DNA) to derive the best goods and services for the
benefit of human beings (US .
National Science Foundation)
Application of
Biotechnology in the field of Agriculture
Insect resistant plant:
In the early
part of this century, a scientists named G.S. Berliner found that the
sporulating cells of a Bacillus sp.
were inhibitory the moth larvae. Berliner named the organisms Bacillus thuringiensis. B. thuringiensis produces toxic crystal
in order to cells during the process of sporulation. The toxic substance as an
alkaline protein, is deposited on leaves and ingested by caterpillar gut, moth
and other related insects. In the caterpillar gut, the insecticide dissolves
and the larvae experience paralysis and dead.
Bacillus
thuringiensis (Bt) appears to be harmless to plants and other animals. It
is produced by harvesting bacteria at the onset of sporulation and drying them
into a commercially available dusting powder. The product is useful on tomato, horn worms
and gypsy moth caterpillars. Its success led to
discovery of a new strain called B.
thuringiensis israelensis (Bti), first isolated in Israel .
A particular
gene is responsible for producing toxic crystal protein. Biotechnologist were
extracted toxin producing gene (Bt) from B.
thuringiensis and the gene to be inserted in the T-region of the Ti plasmid
for making recombinant DNA, which is then introduced in to Agrobacterium cells. Such
Agrobacterium cells are cocultured with the plant cells into which the gene
is to be transferred. The T-region of the Ti-plasmid along with its DNA insert
is ultimately integrated into the plant genome. The plant produces a crystal
protein which is toxic to most lepidopteran, many coleopteran and other related
insects. A truncated version of the (Bt) gene has been transferred into
tobacco, tomato, cotton etc.
In 1941, Bacillus popilliae was introduced as a
control measure for Japanese beetles. The bacillus infects beetle larvae and causes milky spore disease. So named because the
blood of the larvae becomes milky white. The larvae eventually die and the
bacillus spore remain in the soil to infect other larvae.
In 1985,
Scientists at the Monsanto Company announced the development of a new microbial
insecticide for corn plants. Toxic producing
genes were extracted from B.
thuringiensis and inserted to Pseudomonas
fluorescens, a common Gram negative rod that colonizes the roots of corn
plants. The Monosanto groups sprayed corn plants with reengineered Pseudomonas and determined that the
bacteria would take up residence with the plants, thereby providing a built-in insecticide.
Viruses also show promise
as pest control device partly because they are more selective in their activity
than bacteria. Once released in the field, the viruses spread naturally. It is
also possible to harvest early disease victims, grind them up, and use them
disseminate the virus to new locations. Among the insects successfully
controlled with viruses are the cotton boll
worm, cabbage
looper and alfalfa
caterpillar.
Herbicides
resistance plants:
Herbicides are used in agriculture for killing the weeds
(unwanted plants). Normally, herbicide kills both weeds and useful
plants by inhibiting an enzyme necessary for making certain essential amino
acids. EPSP is an enzyme and play an important role for the production of essential

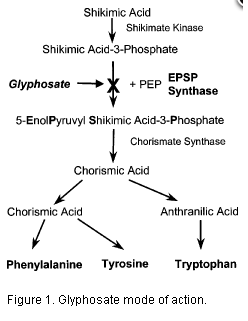

amino acid in plants. Herbicide glyphosate
inhibits the shikimate pathway in plants. The same pathway is found in the
bacterium Salmonella typhimorium. Glyphosate
is an inhibitor of the enzyme 5-enolpyruvylshikimate-3-phosphate (EPSP)
synthase, a key enzyme of the shikimate pathway. It therefore, blocks the
production of chorismic acid which is
essential precursor for the synthesis of the aromatic amino acid and essential
aromatic metabolites such as artho-amino benzoate. The drawback to glyphosate
is that it is equally effective on valuable crops and on weeds.
Glyphosate
resistant mutants of S. typhimorium
can be isolated by standard mutagenesis.
Salmonella
bacteria happen to have this enzyme and some Salmonella have a mutant enzyme
that is resistant to the herbicides. In S.
typhimorium, aroA gene is
responsible for the production of EPSP enzyme. When the aroA gene for this enzyme is introduced into a croup plants using Ti
plasmid co-integrate vector and the leaf disc transformation technique, the
croup becomes resistant to the herbicide by producing more EPSP enzyme. The aroA/resistant gene for EPSPS was
transferred to Tobacco plants and transgenic tobacco was developed which was
resistant to glyphosate herbicide.
There are now a
variety of plants in which different herbicide and pesticide resistant have
been engineered. Resistance to drought, viral infection and several other
environmental stresses has also been engineered into croup plants.
Nitrogen fixation transgenic plant:
Nitrogen is an essential element
in nucleic acids and amino acids. Although it is the most common gas in the
atmosphere (about 80% of air), animals can not use nitrogen in its gaseous
form, nor can any but a few species of plants. The animals and plants thus
require the assistance of microorganisms to trap the nitrogen.
Two general types of
microorganisms are involved in nitrogen fixation: free living species and symbiotic
species. Free living species include bacteria of the genera is Bacillus, Clostridium, Pseudomonas
and Azotobacter, as well as types of
Cyanobacteria and certain Yeasts. Generally, the free living species fix
nitrogen during their growth cycle. Symbiotic species of nitrogen fixing microorganisms live in association with
plants. This plant known as legumes, include peas, beans, soybeans, alfalfa,
peanuts etc. Species of Gram-negative rods known as Rhizobium infect the roots of plants and live within swellings or
nodules, in the roots. Rhizobium
fixes nitrogen into root nodule and makes nitrogenous compounds (NH3/NH4)
available to plant, while taking energy rich carbon compounds in return.
In Klebsiella pneumonia, nif
gene is responsible for the fixation of atmospheric nitrogen. Biotechnologist
were isolated nitrogen fixing gene (nif)
from Klebsiella and the gene to be
inserted in the T-region of the Ti plasmid for making recombinant DNA, which is
then introduced in to Agrobacterium
cells. Such Agrobacterium cells are
co-cultured with the plant cells into which the gene is to be transferred. The
T-region of the Ti-plasmid along with its DNA insert is ultimately integrated
into the plant genome. The plant fixes atmospheric nitrogen and converted into
ammonia.
Improved strains and new species
of nitrogen fixing plants should be developed in order to reduce the use of
chemical fertilizers in the field.
Production of Virus resistant Plants:
The
method most frequency used for producing virus-resistant plants sprang from the
observation that, oftentimes, plants infected by nearly avirulent virus are
thereafter resistant to super infection by a related, highly virulent one.
Thus, deliberate infection with avirulent virus strain has been used to produce
protection in crop plants. This phenomenon is known as cross-protection. The
method is not totally safe; however, because the avirulent strains many mutate
to produce strains that are significantly pathogenic. Most plant viruses are
positive strand RNA viruses covered by coat protein sub units. The coat protein
gene (cp) from TMV (Tobacco Mosaic Virus) was inserted into tobacco plants
genome via the Agro-bacterium using Ti-plasmid vector through disc
transformation technique. Tranagenic plants, whose genomes contain introduced
tobacco mosaic virus (TMV) coat protein genes and which continuously synthesize
the coat proteins, show resistance to virus infection. Transgenic plants
showing significant resistance to TMV alfalfa mosaic virus, cucumber mosaic
virus, tobacco streak virus and tobacco rattle virus have already been produced
in this manner.
Production of Organic Compounds
Microorganisms
are used in industry to produce a variety of organic compounds including acids,
growth stimulates and enzymes.
Citric acid
is one of the first organic acids to be made in bulk by microorganisms. The
organism most widely used in citric acid production is the mold Aspergillus niger . Microbiologists
inoculate the mold to a medium of corn meal, molasses, salts and inorganic
nitrogen in fermentation tanks. The absence of a Krebs cycle enzyme in the mold
prevents the metabolism of citric acid and the citric acid accumulates in the
medium.
Citric acid is
used in food industry (eg. fruit
drinks, confectionery, jams, jellies, preserved fruits, candies, wines), pharmecy (eg. blood transfusion ), cosmetics (eg. lotions, shampoos and
hair setting fluids) and industries
(eg. electroplating, leather tanning, cleaning of pipes, reactivation of old
oil wells).
Out line of citric
acid production method
Lactic acid
is another important microbial product. Several carbohydrate substances corn
starch, potato starch, molasses’s and dairy whey can be used for the production
of lactic acid.
Lactic acid is
commonly produced by bacterial activity on the whey portion of milk. The whey
culture is added to the fermentation tank in a volume equivalent to 5-10% of the
total volume to be fermented. Tem. 430C.
Lactobacillus bulgaricus is widely used
in the fermentation because it produces only lactic acid from lactose.
Any starch used
must first be hydrolyzed to glucose by treatment with acids or enzymes.
Lactic acid is
used to preserve foods, finish fabrics, prepare hides for leather and dissolve
lacquers.
Calcium lactate
used in the treatment of calcium deficiency and Ion lactate used in the
treatment of anaemia. Sodium lactate is used as Pasticizer and moisturizer.
|
|
Gluconic acid another valuable organic acid
is useful in medicine as a carrier for calcium. This acid is produced from
carbohydrates by Aspergillus niger
and species of the bacterium Gluconobacter
cultivated in fermentation tanks.
Calcium gluconate is also added to the feed of laying hens
to provide calcium that strengthens the eggshells.
Glutamic acid is an organic acid produced by certain species of Micrococcus, Arthrobacter and Brevibacterium.
Glutamic acid is a valuable food supplement for humans and
animals and its sodium salt, monosodium glutamate is utilized in food
preparations.
Riboflavin (vitamin B2) and Cyanocobalamin (vitamin B12) are also products of microbial growth.
Riboflavin is a produced of Ashbya gossypii. Cyanocobalamin is produced by selective species of
Pseudomonas, Propionibacterium and Streptomyces.
This vitamin prevents pernicious anemia in humans and is
most essential for human growth and is also used in bread, flour, cereal
products and animal feeds.
Daily requirement of vitamin B12 is about 0.001
mg.
Enzymes and Other products:
Many fungi and bacteria synthesize and secrete industrially
useful enzymes into the surrounding medium. For instance, molds such as Aspergillus, Penicillium, Mucor and Rhizopus
secrete enzymes that are useful in the processing of a variety of materials.
These enzymes include amylase, invertase, protease and pectinase.
Amylase is produced by the mold Aspergillus oryzae. It is used as
a spot remover in laundry presoaks, as an adhesive, and in baking.
Invertase, an enzyme from yeast is mixed flavoring agents and solid
sucrose and then covered with chocolate. The enzyme converts some of the
sucrose to liquid glucose and fructose, forming soft center of the chocolate.
Proteases are a group of protein digesting enzymes produced by Bacillus subtilis, Aspergillus oryzae and other microorganisms.
Proteases are used as liquid glues, laundry presoaks, meat
tenderizers, drain openers, and spot removers.
Proteases are also used for bating hides in leather
manufacturing, a process in which organic tissue is removed from the skin to
yield a finer texture and grain.
In medical microbiology, doctors use another microbial
enzyme, streptokinase, to breakdown
blood clots formed during heart attack.
Hyaluronidase is another enzyme that used to facilitate the absorption
of fluids injected under the skin.
Gibberellins are a series of plants hormone that promote growth by stimulating
cell elongation in the stem. This hormone use to hasten seed germination and
flowering. This increases the yield of fruit and in the case of graps, enhances
their size.
Gibberellins are produced during the metabolisms of the
fungus Gibberella fujikuroi and may
be extracted from these organisms for commercial use.
Alcohols and Alcoholic Beverages:
Ethanol (ethyl
alcohol) is a common solvent and raw materials used in the laboratory and in
the chemical industry. It is produced by yeasts using and fermentable
carbohydrate as substrate.
Corn, molasses,
sugar beets, potatoes and grapes are some of the raw materials used for
alcoholic fermentation.
Following are
some of alcohol producing microorganisms:
Bacteria: Clostridium acetobutylicum, Klebsiella
pneumoniae, Sarcina ventriculi, Zymomonas
mobilis etc.
Yeast: Aspergillus oryzae, Saccharomyces
cerevisiae, S. oviformis, S. saki, Rhizopus sp., Trichosporium
cutaneum etc.
Yeast, S. cerevisiae are usually used for
ethanol production.
C6H12O6
(Fermented carbohydrate)………………2 CH3CH2OH (Alcohol) + 2 CO2.
Ethanol is a
component of alcoholic beverages, and microorganisms are needed to produce such
products as wine and beer. Percentage of alcohol differs in different alcoholic
beverages.
Wine: It is mainly an European drink
produced from juice of fresh grapes (Vitis
vinifera). In ripen grapes, concentration of sugar (glucose and fructose)
increases. Grapes juice (27% sugar) is fermented by various strains of S. ellipsoideus
into alcohol and also reders the chemical constituents which alters the
flavour.
The
fortified wines (brandy) are prepared on additional of extra ethanol to wines,
when fermentation is over, for raising the concentration to about 20%.
Beer: The word beer is derived from the
Anglo-Saxon baere, meaning barley. Beer is produced after the fermentation of
mixture barley malt and starch solution by S. cerevisiae.
Malt
is prepared from barley. Grains are allowed to germinate. After 4-6 days
amylase and protease are formed. The germinate grains are gradually heated at
about 800 C. Malt is mixed with starch cereals (rice, maize, wheat)
to produce grist. Mash is prepared by adding hot water to the grist holding for
a period to allow enzymatic conversion and draining off the resultant sweet
wart. Wart is filtered and then boiled to inactivate enzyme. Then Hops (Humulus lupulus) are added to the wart,
giving in flavour, colour and stability. Finally it is fermented with yeast.
After
fermentation sugar is converted into alcohol and also brings about minor
chemical changes, for example protein.
Brandy is made from fruit juice.
Rum is produced from molasses.
Whiskey is a product of various malted
cereal grains.
Votka, which is made from potato
starch.
Application of Biotechnology in the Medical
Science
Production of Human Insulin:
Insulin is
secreted by the Islets of Langerhans of Pancreas tissues which catabolizes
glucose in blood. Insulin is a boon for the diabetes whose normal function for
sugar metabolisms generally fails.
Diabetes is a
common condition and world wide the number of insulin user is more than 2
million. Traditionally, diabetes has been treated with bovine and porcine
insulin which is extracted from the pancreas recovered from the slaughtered
animals.. The animal insulin is not identical to human insulin. Hence some
diabetes produce antibodies against the insulin they need to keep them alive.
Therefore, the insulin is destroyed before the body can use it. Such type of
this problem can be solved only by using human insulin produced by genetically
engineered bacteria which contain the human “insulin gene”.
Human insulin production is completed by
the following steps:
- The desired DNA/genes are selected. They are plasmid of E. coli bacteria and human gene from pancreas which control insulin production.
- The plasmid of the bacteria is cut/split at certain
specific site by the restriction enzyme to ease insertion of human insulin
gene.
- To isolate and cut out the single gene in human
cells which control insulin production. The isolation and cutting of the
human gene is accomplished by restriction enzymes.
- The insulin gene (DNA) is inserted into the
splitted part of the plasmid using ligase enzyme. In this way, the
recombinant DNA is produced.
- The recombinant DNA is transferred into the E. coli bacteria. In the nutrient media E. coli reproduces rapidly doubling every half hour under favorable condition and make pure human insulin.
It is estimated that cloned of E. coli are capable of producing about one
million molecules of insulin per bacterial cell.
Human insulin (Humulin) is the first therapeutic product produced by
recombinant DNA technology by Eli Lilly Company & Co. and marketing in
1980.
Vaccine for Foot and Mouth Disease Virus
(FMDV):
Foot and Mouth
Disease (FMD) is a serious disease caused
by Aphthovirus. The primary control
measure of the disease has been the slaughter of FMDV-infected animals.
Vaccines are produced by inactivation of virus grown in bovine tongue
epithelium. FMDV contains a single stranded RNA covered in a capsid of four
polypeptides, for example, VP1, VP2, VP3 and VP4 where only VP1 and VP3 has a
little immunogenic activity. Thus, the gene for VP1/VP3 became a target for
cloning. However, the nucleotide sequence encoding for VP1/VP3 was identified
on the single stranded RNA genome and therefore, it was necessary first to
synthesize a double stranded cDNA of entire genome (approximately 8,000
nucleotides long). This cDNA was then digested with restriction enzymes, and
the fragments were cloned on double stranded pBR322 in E. coli. About 1,000
molecules of VP1/VP3 per bacterial cell were synthesized (Kupper et.al. 1981).
